Running RDMA in Containers on Kubernetes and Benchmarking Performance

I got RDMA working in containers on Kubernetes using SR-IOV, so I’m documenting the process including the issues I ran into. I also benchmarked the performance of RDMA vs TCP/IP.

The Japanese version of this article is available here.

What We’ll Do

Create SR-IOV VFs (Virtual Functions)
Assign VFs to containers on Kubernetes
Add RDMA devices to containers on Kubernetes
Benchmark RDMA vs TCP/IP performance

Environment

A Kubernetes cluster is built on two Ubuntu machines (AMD EPYC 7282 16-Core Processor) directly connected via Mellanox Technologies MT27800 Family [ConnectX-5] (a RoCEv2-capable 100 Gbps Ethernet NIC). Kubernetes is configured to use this NIC for inter-node communication. The container runtime is containerd.

SR-IOV

We’ll create one VF from the PF (Physical Function). Follow the official documentation¹.

First, check the BIOS settings to ensure SR-IOV and IOMMU are enabled. Then add the following grub parameters and reboot:

$ cat /etc/default/grub
...
GRUB_CMDLINE_LINUX="amd_iommu=on iommu=pt pci=realloc"
...

Modify the NIC parameters:

$ sudo mst start
Starting MST (Mellanox Software Tools) driver set
Loading MST PCI module - Success
Loading MST PCI configuration module - Success
Create devices
Unloading MST PCI module (unused) - Success

$ sudo mst status
MST modules:
------------
    MST PCI module is not loaded
    MST PCI configuration module loaded

MST devices:
------------
/dev/mst/mt4119_pciconf0         - PCI configuration cycles access.
                                   domain:bus:dev.fn=0000:41:00.0 addr.reg=88 data.reg=92 cr_bar.gw_offset=-1
                                   Chip revision is: 00

$ sudo mlxconfig -d /dev/mst/mt4119_pciconf0 q

Device #1:
----------

Device type:        ConnectX5
Name:               MCX515A-CCA_Ax_Bx
Description:        ConnectX-5 EN network interface card; 100GbE single-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6
Device:             /dev/mst/mt4119_pciconf0

Configurations:                                          Next Boot
...
        NUM_OF_VFS                                  0
        SRIOV_EN                                    False(0)
...

$ sudo mlxconfig -d /dev/mst/mt4119_pciconf0 set SRIOV_EN=1 NUM_OF_VFS=1
...
$ sudo mlxconfig -d /dev/mst/mt4119_pciconf0 q

Device #1:
----------

Device type:        ConnectX5
Name:               MCX515A-CCA_Ax_Bx
Description:        ConnectX-5 EN network interface card; 100GbE single-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6
Device:             /dev/mst/mt4119_pciconf0

Configurations:                                          Next Boot
...
        NUM_OF_VFS                                  1
        SRIOV_EN                                    True(1)
...

After rebooting, run the following:

$ ibv_devices
    device                 node GUID
    ------              ----------------
    mlx5_0              abcdef0300ghijkl
$ echo 1 > /sys/class/net/enp65s0np0/device/sriov_numvfs
$ ibv_devices
    device                 node GUID
    ------              ----------------
    mlx5_0              abcdef0300ghijkl
    mlx5_1              0000000000000000
$ ip link
...
4: enp65s0np0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000
    link/ether ab:cd:ef:gh:ij:kl brd ff:ff:ff:ff:ff:ff
    vf 0     link/ether 00:00:00:00:00:00 brd ff:ff:ff:ff:ff:ff, spoof checking off, link-state auto, trust off, query_rss off
...
9: enp65s0v0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether lm:no:pq:rs:tu:vw brd ff:ff:ff:ff:ff:ff permaddr 01:23:45:67:89:01
...

At this point, we can confirm that mlx5_1 has been created. TCP/IP communication using the VF is now possible (once you assign an IP address). However, the VF’s GUID is currently 0. There is a known issue where RDMA doesn’t work in this state:

# https://docs.nvidia.com/networking/display/mlnxofedv451010/known+issues
1047616 | Description: When node GUID of a device is set to zero (0000:0000:0000:0000), RDMA_CM user space application may crash.
Workaround: Set node GUID to a nonzero value.
Keywords: RDMA_CM

Set the GUID to a non-zero value. I’m not sure what the correct value should be, but since the physical NIC’s GUID is formed by inserting 0300 in the middle of the MAC address, I followed the same pattern:

$ echo lm:no:pq:03:00:rs:tu:vw | sudo tee /sys/class/net/enp65s0np0/device/sriov/0/node
$ echo 0000:41:00.1 | sudo tee /sys/bus/pci/drivers/mlx5_core/unbind
$ echo 0000:41:00.1 | sudo tee /sys/bus/pci/drivers/mlx5_core/bind

$ ibv_devices
    device                 node GUID
    ------              ----------------
    mlx5_0              abcdef0300ghijkl
    mlx5_1              lmnopq0300rstuvw

At this point, the SR-IOV VF is created and ready for RDMA.

Containers and SR-IOV

Now let’s assign the VF we created to a container. The proper approach would be to use SR-IOV CNI plugin² and Multus³, but this time we’ll do it manually using nerdctl and ip commands.

We’ll proceed assuming you already have a Pod running on Kubernetes. First, find the network namespace and make it manageable with the ip command:

$ NAME=testtest
$ CONTAINERID=$(kubectl get pod $NAME -o json | jq -r '."status"."containerStatuses"[0]."containerID"' | sed 's/containerd:\/\///')
$ PID=$(sudo nerdctl --namespace k8s.io inspect $CONTAINERID --format '{{.State.Pid}}')
$ NETNSNAME=k8s-$NAME
$ sudo ln -s /proc/$PID/ns/net /var/run/netns/$NETNSNAME

Placing a file under /var/run/netns makes it accessible to the ip command. Move the VF from the host’s network namespace to the container’s network namespace:

$ ip netns
k8s-testtest
$ VFLINKNAME=enp65s0v0
$ VFLINKADDR=192.168.0.1/24
$ sudo ip link set dev $VFLINKNAME netns $NETNSNAME
$ sudo ip -n $NETNSNAME link set dev $VFLINKNAME up
$ sudo ip -n $NETNSNAME addr add $VFLINKADDR dev $VFLINKNAME

Now the container can directly use the VF.

Containers and RDMA

To use RDMA from a container, you need to make the devices under /dev/infiniband visible to the container. If the container has privileged access, you can simply mount it from the Pod manifest⁴. If you don’t want to grant privileges, you need to assign devices to the container using the Kubelet Device API. Using smarter-device-manager⁵, you can treat devices as Kubernetes resources, similar to CPU and memory.

First, add the DaemonSet following the official sample:

# https://gitlab.com/arm-research/smarter/smarter-device-manager/-/blob/master/smarter-device-manager-ds.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: smarter-device-manager
  namespace: device-manager
  labels:
    name: smarter-device-manager
    role: agent
spec:
  selector:
    matchLabels:
      name: smarter-device-manager
  updateStrategy:
    type: RollingUpdate
  template:
    metadata:
      labels:
        name: smarter-device-manager
      annotations:
        node.kubernetes.io/bootstrap-checkpoint: "true"
    spec:
      priorityClassName: "system-node-critical"
      hostname: smarter-device-management
      hostNetwork: true
      dnsPolicy: ClusterFirstWithHostNet
      containers:
      - name: smarter-device-manager
        image: registry.gitlab.com/arm-research/smarter/smarter-device-manager:v1.1.2
        imagePullPolicy: IfNotPresent
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop: ["ALL"]
        resources:
          limits:
            cpu: 100m
            memory: 15Mi
          requests:
            cpu: 10m
            memory: 15Mi
        volumeMounts:
          - name: device-plugin
            mountPath: /var/lib/kubelet/device-plugins
          - name: dev-dir
            mountPath: /dev
          - name: sys-dir
            mountPath: /sys
          - name: config
            mountPath: /root/config
      volumes:
        - name: device-plugin
          hostPath:
            path: /var/lib/kubelet/device-plugins
        - name: dev-dir
          hostPath:
            path: /dev
        - name: sys-dir
          hostPath:
            path: /sys
        - name: config
          configMap:
            name: smarter-device-manager

Next, specify /dev/infiniband in the ConfigMap:

apiVersion: v1
kind: ConfigMap
metadata:
  name: smarter-device-manager
  namespace: device-manager
data:
  conf.yaml: |
    - devicematch: infiniband
      nummaxdevices: 20

At this point, the Node manifest looks like this:

status:
  allocatable:
    cpu: "32"
    ephemeral-storage: "885012522772"
    hugepages-1Gi: 8Gi
    hugepages-2Mi: "0"
    memory: 123272716Ki
    pods: "110"
    smarter-devices/infiniband: "20"
  capacity:
    cpu: "32"
    ephemeral-storage: 960300048Ki
    hugepages-1Gi: 8Gi
    hugepages-2Mi: "0"
    memory: 131763724Ki
    pods: "110"
    smarter-devices/infiniband: "20"

Then add it as a request in the Pod manifest:

spec:
  containers:
  - ...
    resources:
      limits:
        smarter-devices/infiniband: 1
      requests:
        smarter-devices/infiniband: 1

Now the container can use RDMA.

By the way, when starting a container with nerdctl without Kubernetes, you can simply add the option --device=/dev/infiniband (the same should work for Docker).

Performance Benchmarking

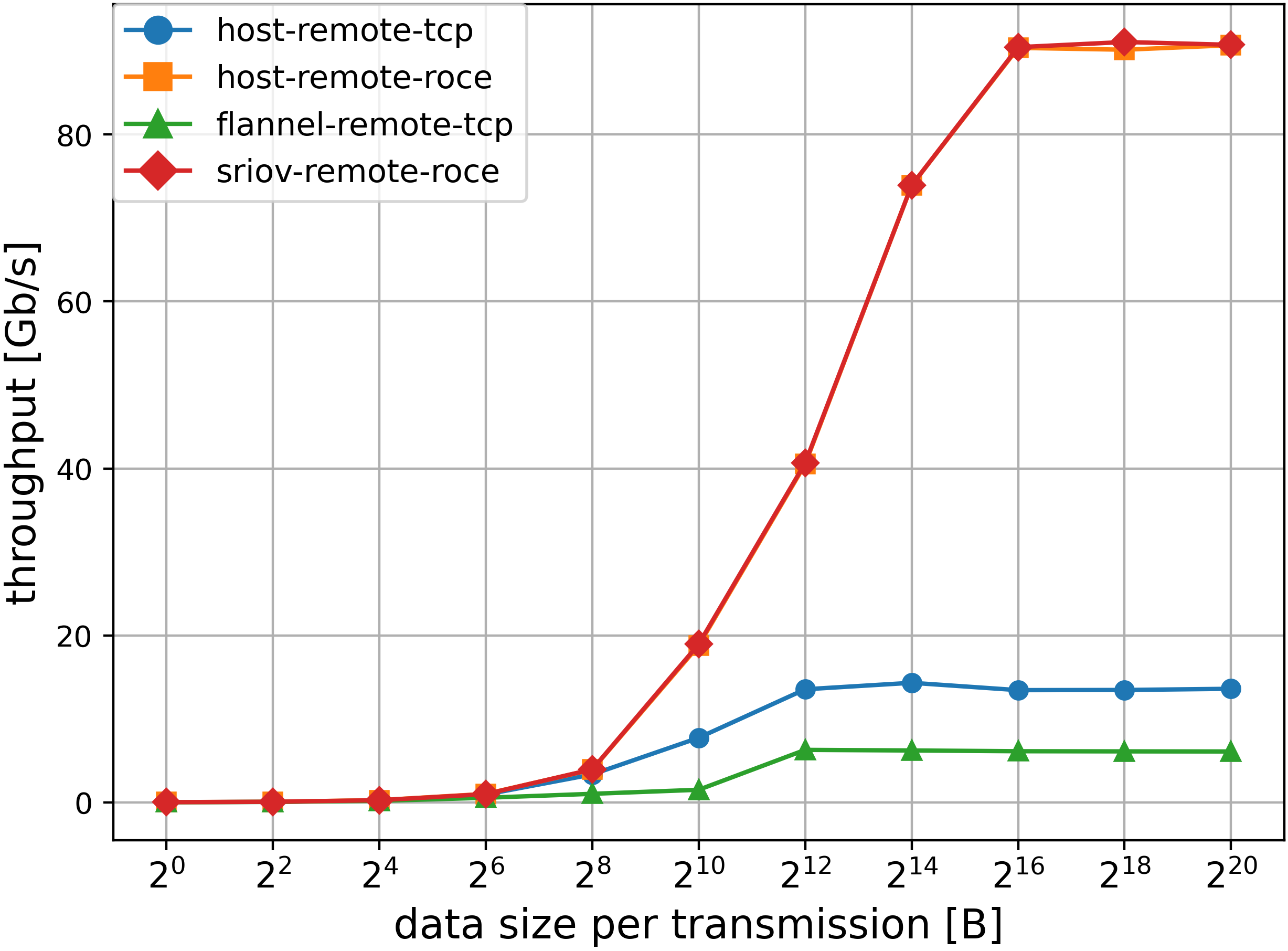

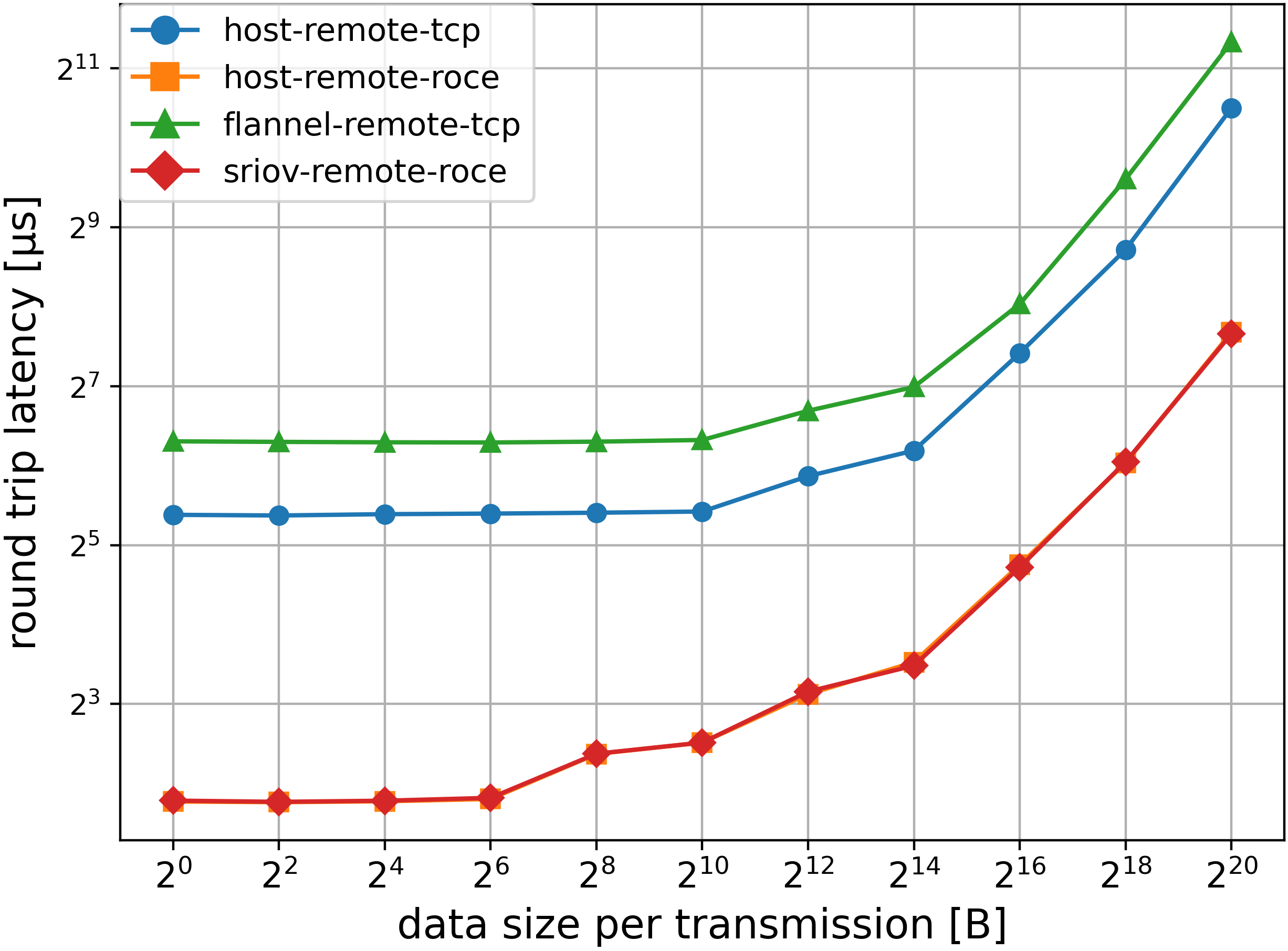

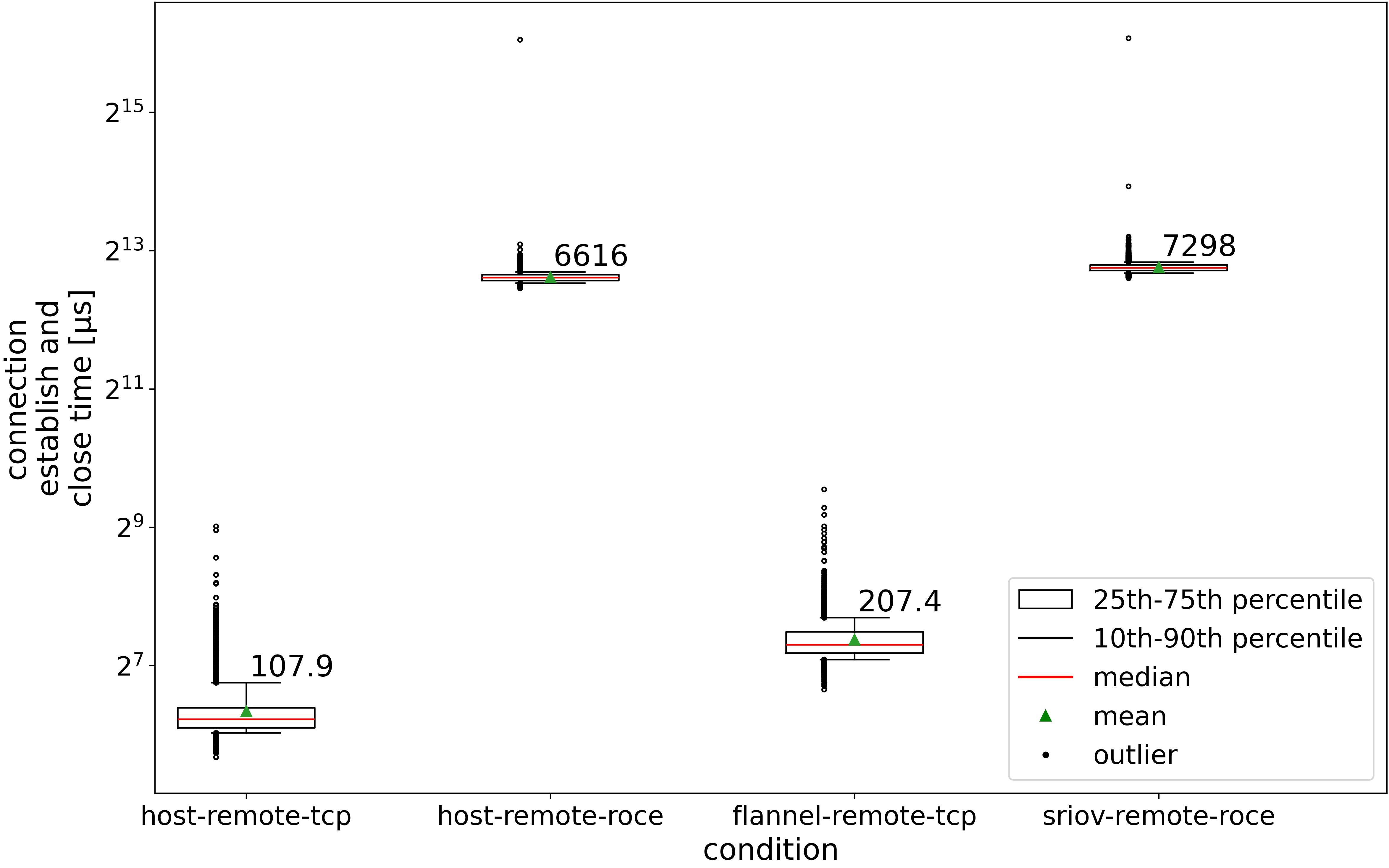

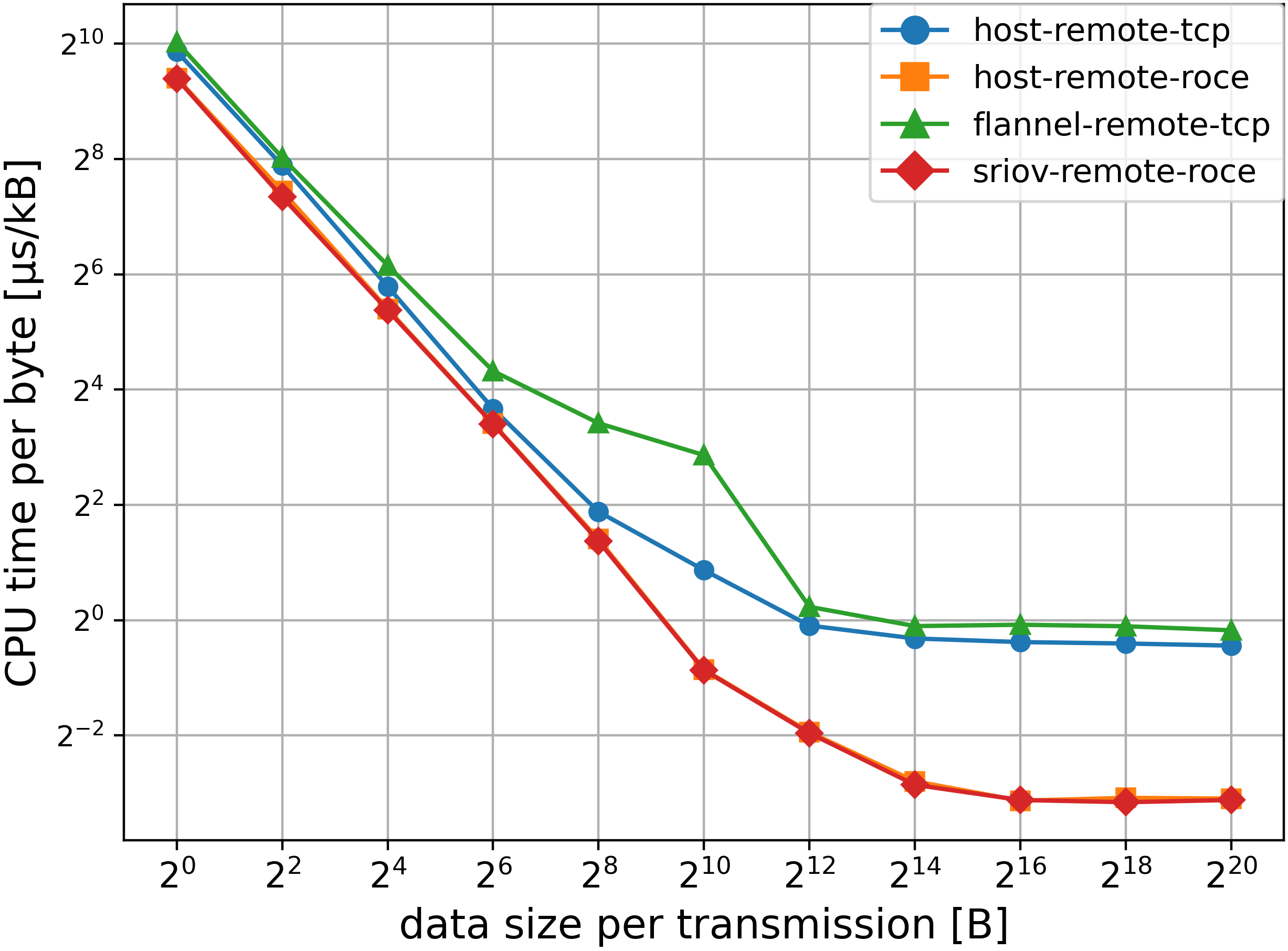

Using Netperf⁶, we measured throughput, latency, and CPU time. We also measured connect & close time with custom code. To use RDMA with socket API code, we LD_PRELOADed rsocket⁷.

host-remote-tcp: TCP/IP for host-to-host communication
host-remote-roce: RoCEv2 for host-to-host communication
flannel-remote-tcp: TCP/IP between containers on different hosts using Flannel as the CNI Plugin
sriov-remote-roce: RoCEv2 between containers on different hosts using SR-IOV VFs

Detailed descriptions of other conditions are omitted.
